What is the pressure rating of HDPE pipe when using Victaulic® couplings for HDPE?

Victaulic® couplings meet or exceed the working pressure of HDPE pipe. The pressure rating of HDPE pipe is determined by the material and the pipe wall thickness SDR or DR. ANSI size pipe is typically made to PE4710 which has pressure ratings of 333psi in SDR 7, 200psi in SDR 11 and 125 in SDR 17. ISO size pipe is typically made from PE100, which has pressure ratings of 25 bar in SDR 7, 16 Bar in SDR 11 and 10 Bar in SDR 17.

Can I bury Victaulic® products for HDPE pipe when installed on HDPE pipe?

Yes. Victaulic® couplings for HDPE pipe are designed for buried services. Victaulic provides industry-accepted coatings that protect the coupling housings and hardware from harsh underground environments. For specific questions on buried service requirements and/or severe applications, please contact Victaulic.

What are the bending capabilities of Victaulic® couplings for HDPE?

Plastic Pipe Institute (PPI) and many pipe manufacturers publish the minimum bend radius recommended for HDPE pipe. These values vary by pipe diameter, wall thickness and material. Pipe tested with Victaulic® couplings meet or exceed the pipe recommendations, meaning the joints maintain their integrity at tighter radii of curvature than recommended for the pipe itself.

Can I still drag HDPE pipe with Victaulic® couplings for HDPE installed?

Victaulic test results indicate that there are no negative effects on allowable tensile loads when using Victaulic® couplings for HDPE pipe. Dragging HDPE pipe lengths joined with properly installed Victaulic couplings is similar to fused systems of the same size based on industry standard allowable tensile loads. When dragging HDPE pipe lengths longer than 500 feet, contact Victaulic.

Are there requirements for pipe handling and preparation that differ from the fusing process I use today?

Yes. The pipe ends need to be relatively square minimal pipe scratching/scarring to the sealing surface (reference installation instructions for details). No additional special pipe handling is required. Unlike fusing, the pipe ends can be wet, cold, or warm since the coupling is not sensitive to humidity or temperature variations. The “perfection” of facing HDPE pipe for fusion (scraping the oxide layer, exact squaring of the end, wiping down with a cleaning agent to remove diret and oil) is not required for use of Victaulic® couplings for HDPE pipe.

What if I have system requirements larger than 36” or 900 mm?

For sizes above 36″ or 900 mm, contact Victaulic for details.

HDPE Pipe Connections Mechanical Joining System

System Solution For HDPE Pipe Products

All Products
Pipe Joining
Fittings
Flow Control
Tools

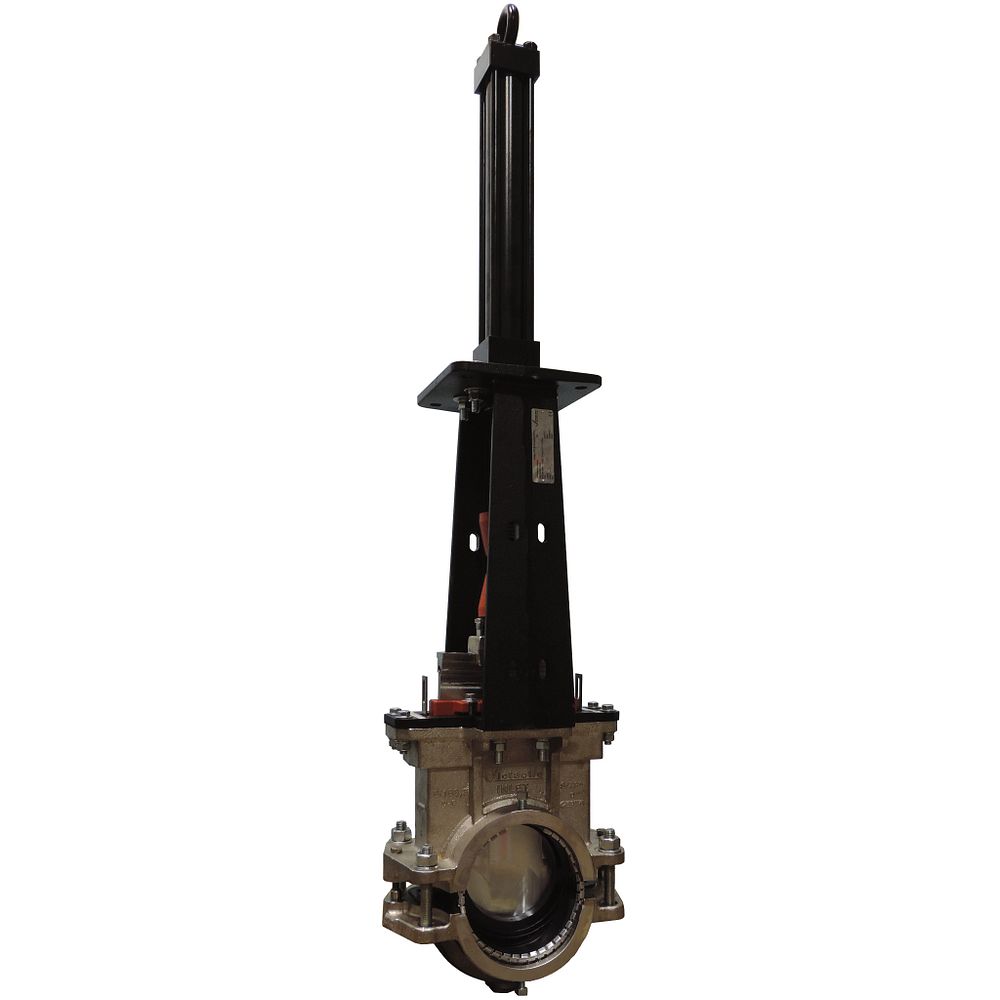

	Series 906 Knife Gate Valve for HDPE Pipe Intended for use on fluid lines containing solids, slurry, and/or abrasive media Designed with stainless steel retaining rings for plain end HDPE pipe (SDR 7 - 21) All wear parts can be replaced in-line without removing the valve from the pipeline -Utilizes patented Installation-Ready™ technology Pneumatic, hydraulic and manual actuation available Sizes from 3 - 8" IPS HDPE Pressures up to 150 psi \| 1035 kPa \| 10 bar	english english

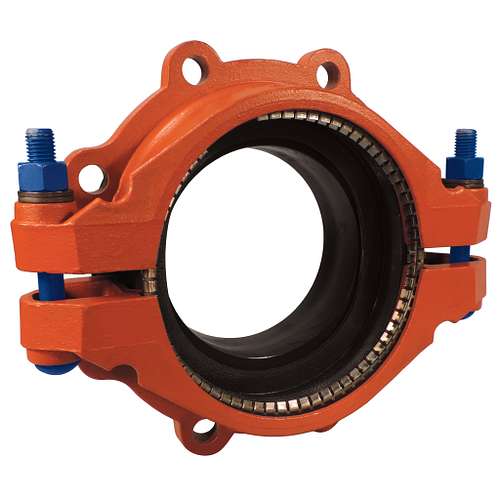

	Style 904 Flange Adapter for HDPE-to-Flanged Pipe Designed to provide a transition from plain end HDPE pipe (SDR 7 - SDR 26) to flanged piping system components Sizes from 3 – 8” IPS HDPE to 3 – 8” IPS ANSI Class 150 Flange Pressure rating meets or exceeds the performance capability of the pipe	english spanish-latin-america english spanish-latin-america

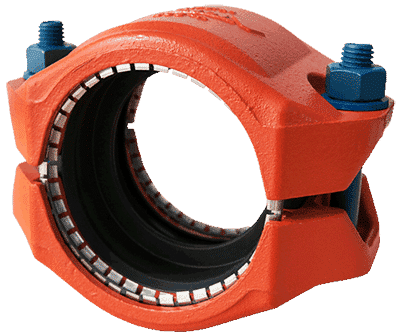

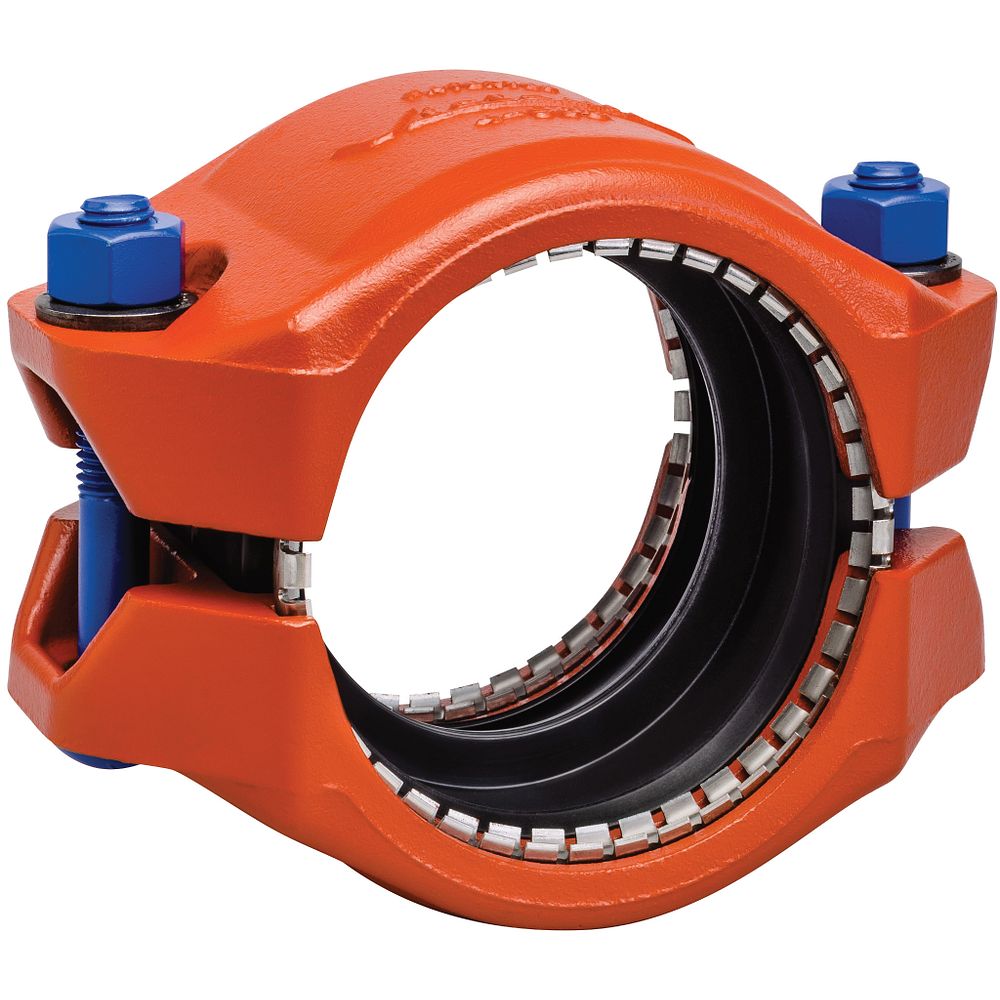

	Style 905 Coupling for HDPE Designed for plain end HDPE pipe (SDR 7 - SDR 26) Sizes from 2 - 14" IPS and 63 - 355 mm ISO Pressure rating meets or exceeds the performance capabilities of the pipe	english chinese-simplified chinese-traditional dutch french-france german italian polish spanish-latin-america swedish turkish english chinese-simplified chinese-traditional dutch french-france german italian polish spanish-latin-america swedish turkish

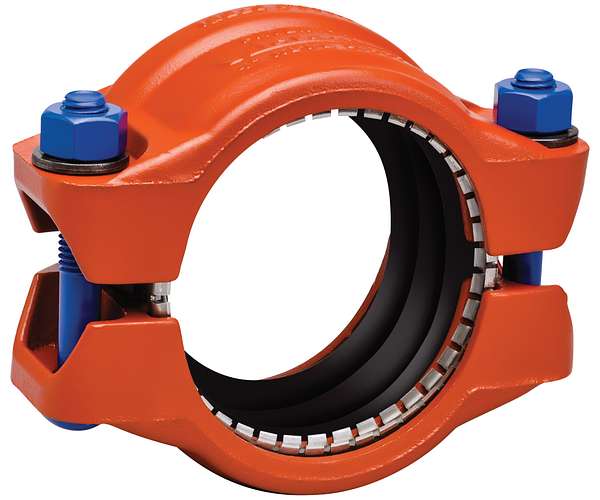

	Style 907/W907 HDPE-to-Steel Transition Coupling Designed to provide a single transition from plain end HDPE pipe (SDR 7 – SDR 26) to grooved steel sized piping system components Sizes from 2 – 14" IPS polyethylene to IPS 2 – 14"/DN50 – DN350 mm grooved steel Sizes from 63 mm – 355 mm ISO polyethylene to IPS 2 – 14"/DN50 – DN350 mm grooved steel Pressure rating meets or exceeds the performance capability of the pipe	english chinese-simplified chinese-traditional dutch french-france german italian polish spanish-latin-america swedish turkish english chinese-simplified chinese-traditional dutch french-france german italian polish spanish-latin-america swedish turkish

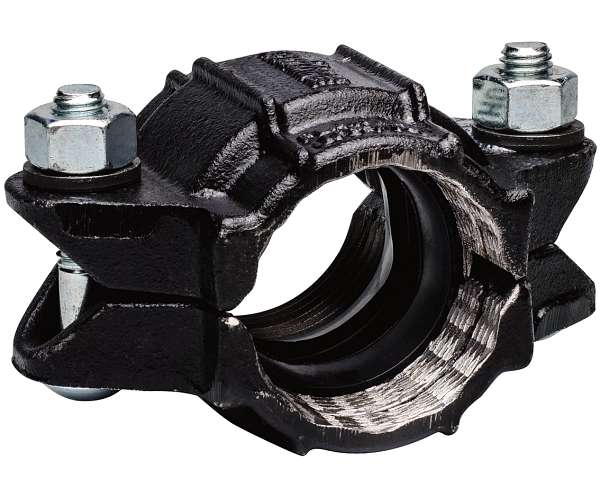

	Aquamine™ Series 2971 Transition Coupling for PVC to HDPE Provides convenient transition from PVC to HDPE without need for special adapters Sizes from 2 - 8" \| DN50 - DN200 Pressures up to 350 psi \| 2413 kPa \| 24 bar	english english

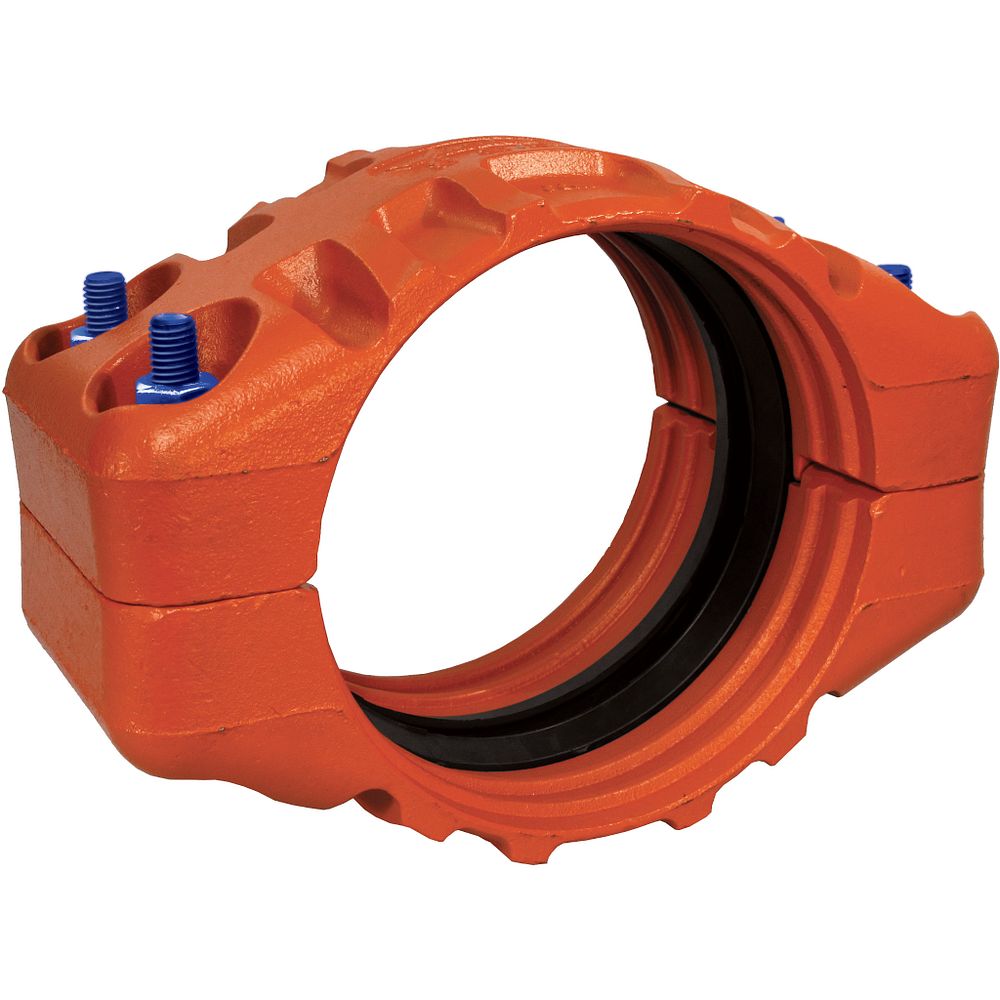

	Style 908 Coupling for HDPE Sizes from 16-36" IPS Designed for double grooved HDPE (SDR 7 - SDR 21) For sizes above 36" or 900 mm, Contact Victaulic for details Pressure rating meets or exceeds the performance capability of the pipe Standard Victaulic coupling assembly procedure used for installation	english chinese-simplified english chinese-simplified

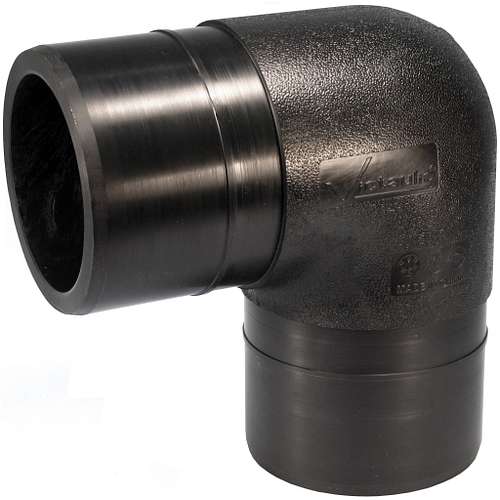

	Plain End HDPE Fittings Available in SDR 7, SDR 9, SDR 11, and SDR 17 Sizes from 2 - 8" IPS and 63 - 225 mm ISO Full flow fittings For use with Style 905, Style 907, Style 904	english brazilian-portuguese chinese-simplified dutch french-canada german italian korean polish russian spanish-latin-america swedish english brazilian-portuguese chinese-simplified dutch french-canada german italian korean polish russian spanish-latin-america swedish

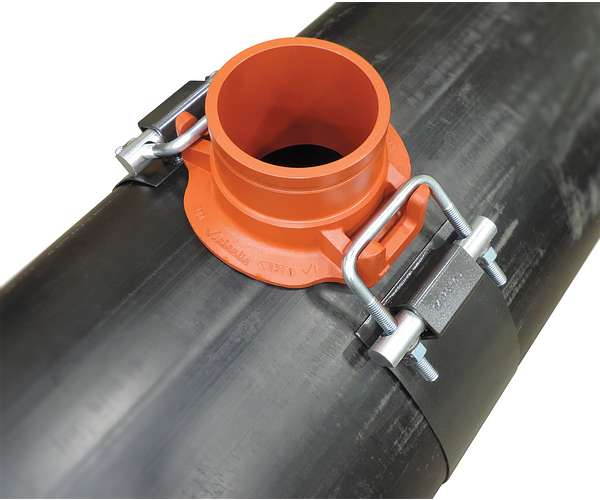

	Style 926 Mechanical-T Spigot Outlet Designed to provide an outlet connection on HDPE, steel, and ductile iron pipe materials in IPS, ISO, and DIPS pipe sizes 4" outlets available for 10" – 32" IPS pipe diameters 6" outlets available for 16" – 48" IPS pipe diameters 8" outlets available for 28 – 36" pipe diameters 114.3 mm outlets available for 250 mm – 800 mm ISO pipe diameters 168.3 mm outlets available for 450 mm – 1200 mm ISO pipe diameters 219.1mm outlets available for 710 mm – 1000 mm ISO pipe diameters	english english

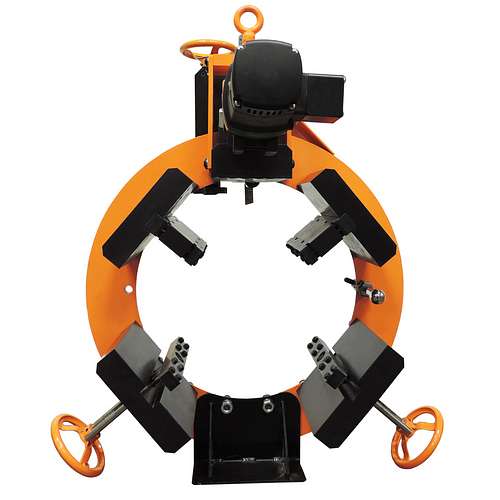

	CG3100, CG3300, CG3500 Cut Grooving Tools Designed for cut grooving 8 – 36” IPS HDPE pipe and 250 – 900 mm ISO HDPE pipe (SDR 7 – SDR 21) Provides the only grooved joining solution for large diameter HDPE pipe Faces and cuts parallel grooves into the end of the pipe CG3000	english brazilian-portuguese french-canada spanish-latin-america english brazilian-portuguese french-canada spanish-latin-america
