DYNAMIC MOVEMENT JOINTS

VICTAULIC IS YOUR FULL SYSTEM SOLUTION PARTNER FOR ACCOMMODATING DYNAMIC MOVEMENT

Victaulic introduces the first M11 compliant grooved assembly to accommodate for dynamic movement. We work to minimize your risk and maximize your certainty.

  • Style 257C Dynamic Movement Joint
  1. 1
  2. 2
  3. 3

dynamic movement joints video library

Mute
Current Time 0:00
/
Duration Time 0:00
Loaded: 0%
Progress: 0%
Stream TypeLIVE
Remaining Time -0:00

  1. Now Playing
    Up NextVictaulic Dynamic Movement Joint Animation
  2. Now Playing
    Up NextVictaulic Valve Vault Solutions for Infrastructure - Reduce Your Valve Vault
  3. Now Playing
    Up NextLuce Bayou Interbasin Transfer Project - Pig Retrieval Station

Dynamic Movement Projects

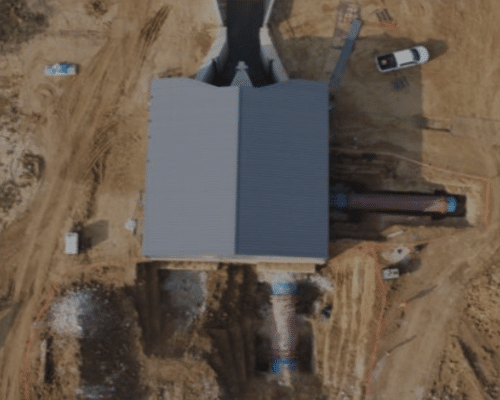

Luce Bayou Interbasin Transfer

Clover Point Pump Station

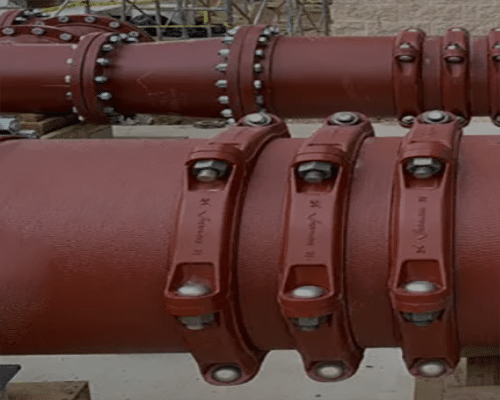

Hamlin WRF Improvements & Expansion

Northeast Water Purification Project

Products

  • All Products
  • Pipe Joining

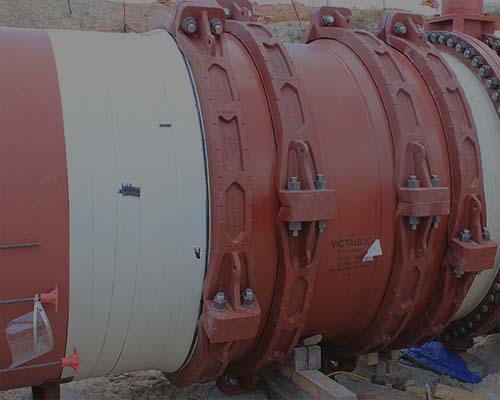

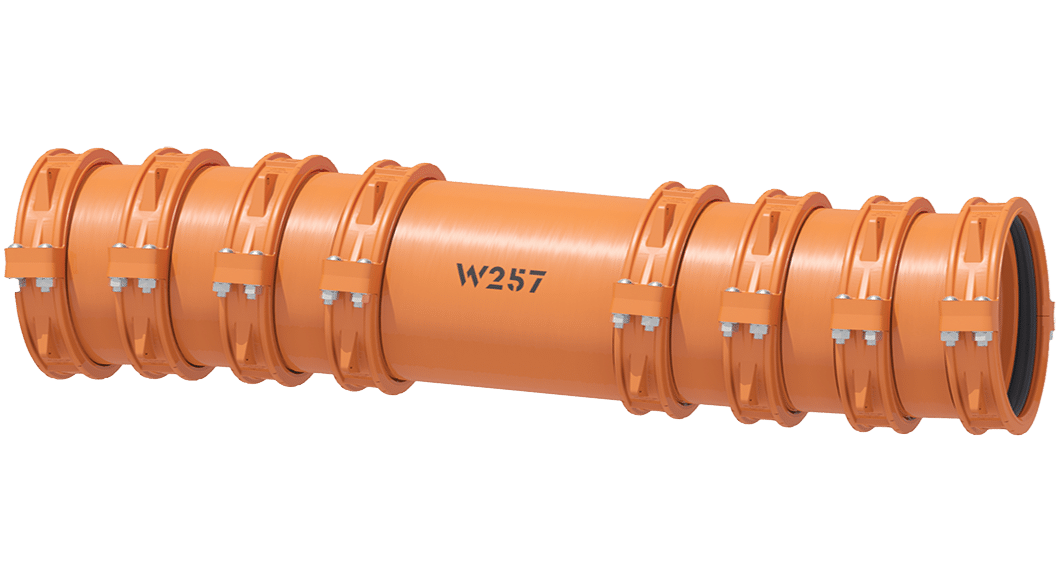

Style W257 Dynamic Movement Joint
Style W257 Dynamic Movement Joint
  • M11 Compliant assembly built to accommodate up to 4’’/ 102mm of dynamic movement including differential settlement, seismic and thermal movement
  • Sizes from 14 - 72’’ / DN350 - DN1600 carbon steel pipe
    • Larger sizes available upon request
  • Working pressure is equal to the Style W77 coupling on an equivalent wall thickness pipe. Reference submittal 20.03
Style W257B Dynamic Movement Joint for Buried Applications
Style W257B Dynamic Movement Joint for Buried Applications
  • M11 Compliant assembly built to accommodate up to 4’’/ 102mm of dynamic movement including differential settlement, seismic and thermal movement
  • Sizes from 14 – 72’’ / DN350 – DN1600 carbon steel pipe
    • Larger sizes available upon request
  • Working pressure is 150 psi

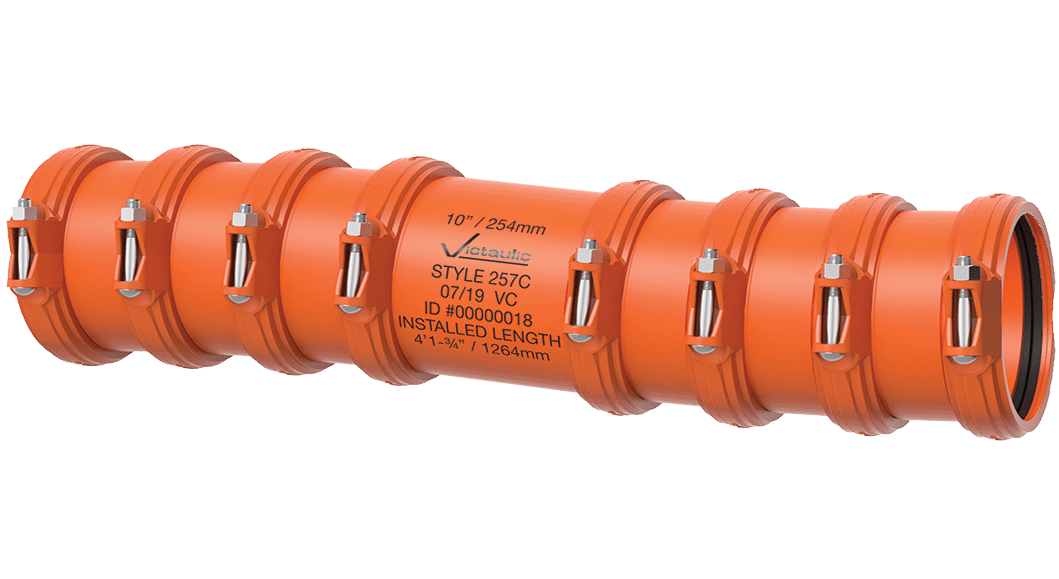

Style 257C Dynamic Movement Joint
Style 257C Dynamic Movement Joint
  • M11 Compliant assembly built to accommodate up to 4’’/ 102mm of dynamic movement including differential settlement, seismic and thermal movement
  • Sizes from 3 – 36"/DN80 – DN900 ductile iron and cast iron pipe
  • Working pressure is equal to the Style 31 coupling on equivalent wall thickness pipe. Reference submittal 23.02

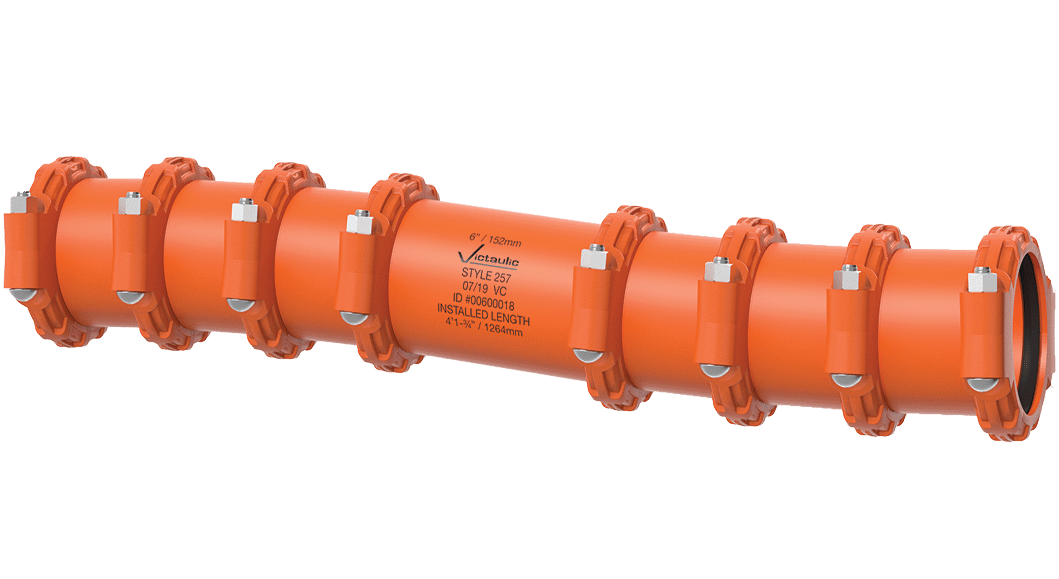

Style 257 Dynamic Movement Joint
Style 257 Dynamic Movement Joint
  • M11 Compliant assembly built to accommodate dynamic movement up to 4’’I 102mm including differential settlement, seismic and thermal movement
  • Sizes from 2 – 12’’ / DN50 – DN300 carbon steel pipe
  • Working pressure is equal to the Style 77 coupling on equivalent wall thickness pipe. Reference submittal 06.04
Style W77/W77B AGS Flexible Coupling
Style W77/W77B AGS Flexible Coupling
  • Unique wedge shaped key profile increases allowable pipe end separation
  • Sizes from 14 - 100+" | DN350 - DN2000
  • Pressures up to 350 psi | 2413 kPa | 24 bar
Style 31 AWWA Coupling
Style 31 AWWA Coupling
  • Provides a rigid or flexible joint on Class 53 or higher pipe
  • Optional coatings include orange enamel, coal tar epoxy, organic zinc primer and bituminous
  • Sizes from 3 - 36" | DN80 - DN900
  • Pressures up to 500 psi | 3447 kPa | 34 bar
  • Regional availability, contact Victaulic for details
