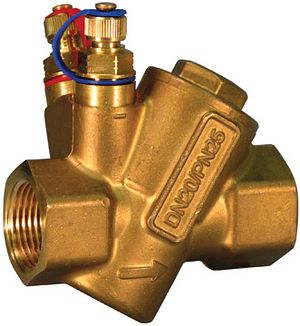

Automatic Balancing Valves

Automatic Balancing Valves

  • Pressures up to 365psi | 2517 kPa | 25bar
  • Rated from -4°F to 250°F | -20°C to 120°C
  • Series 76T, 76B, 76K, 76V
    • Sizes from ½ – 2″ | DN15 – DN50
    • Contains an automatic cartridge with a replaceable orifice plate, specify cartridge type when ordering
    • DZR Brass body with an EPDM O-Ring and NPT thread
    • Differential pressure range 43.5 psi | 300 kPa | 3 bar or 87 psi | 600 kPa | 6 bar
  • Series 76G
    • Sizes from 2½ – 6″ | DN65 – DN150
    • Integrated orifice plate for direct flow measurement
    • Differential pressure range 1.9-87 psi | 13-600 kPa | 0.15-6 bar
  • Regional availability, contact Victaulic for details
